FULLY AUTOMATIC (SCADA CONTROLLED) MUFFLE FURNACE FOR GLASS TO METAL SEALING
Max Design temp :
1200 °C
Max usable temp :
1100 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±40 °C
Rate of heating :
10–1000 / minute
Power rating :
45 kW, 3 PH, 440 V
Furnace Chamber Size :
400 W x 400 H x 600 D mm
Inconel Muffle tube size :
180 mm Dia x 450 mm Hot zone
Know More
BOX FURNACE
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
36 kW, 3 PH, 440 V
Chamber Size :
500 x 500 x 750 mm
Know More
CONVEYOR FURNACE (3 Zone)
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Power rating :
9 kW, 3 PH, 440 V
Chamber Size :
100 x 100 x 1500 mm
Know More
CARBONISATION FURNACE
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
36 kW, 3 PH, 440 V
Chamber Size (usable) :
600 dia x 600 H
Know More
HIGH TEMPERATURE LAB FURNACE
Max Design temp :
1400 °C
Max usable temp :
1350 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
6 kW, 3 PH, 440 V
Chamber Size :
150 x 150 x 300 mm
Know More
MUFFLE FURNACE
Max Design temp :
1200 °C
Max usable temp :
1150 °C
Control Accuracy :
±20 °C
Temp. uniformity :
within ±50 °C
Power rating :
6 kW, 3 PH, 440 V
Chamber Size :
200 x 200 x 350 mm
Know More
FURNACE FOR THERMO STRUCTURAL STUDIES
Max Design temp :
1150 °C
Max usable temp :
1100 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±20 °C
Power rating :
12 kW, 3 PH, 440 V
Uniform Zone Size :
200 Dia x 225 Depth
Know More
VACUUM TUBULAR FURNACE
Max Design temp :
1400 °C
Max usable temp :
1350 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±20 °C
Power rating :
4 kW, 1 PH, 230 V
Chamber Size :
100 Dia x 300 mm Hot Zone
Know More
PROG. INNERT ATMOSPHERE TUBULAR FURNACE
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±20 °C
Power rating :
4 kW, 1 PH, 230 V
Chamber Size :
100 Dia x 200 mm Uniform Zone
Know More
TABLE TOP MUFFLE FURNACE
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
2.5 kW, 1 PH, 230 V
Chamber Size :
150 x 150 x 300 mm
Know More
DRYING OVEN FOR BLOOD BAGS
Max Design temp :
100 °C
Max usable temp :
80 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Heating :
Steam heated hot water
Power rating :
3 kW, 3 PH, 440 V
Chamber Size :
1.2 x 1.2 x 4 Mtrs
Know More
HOT AIR OVEN (BOGIE HEARTH)
Max Design temp :
325 °C
Max usable temp :
300 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
No. of zones :
2 Nos
Power rating :
37.5 kW, 3 PH, 440 V
Chamber Size :
1.2 W x 1.5 H x 2 Mtrs D
Know More
VACUUM OVEN
Max Design temp :
350 °C
Max usable temp :
300 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
2.5 kW, 1 PH, 230 V
Chamber Size :
350 x 350 x 450 mm
Know More
VACUUM FURNACE
Max Design temp :
1100 °C
Max usable temp :
1050 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °°C
Power rating :
6 kW, 3 PH, 440 V
Chamber Size :
300 x 300 x 450 mm
Know More
HOT AIR OVEN
Max Design temp :
300 °C
Max usable temp :
275 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
9.5 kW, 3 PH, 440 V
Chamber Size :
600 x 600 x 1200 mm
Know More
CYLINDRICAL VACUUM OVEN (700 DIA)
Max Design temp :
225 °C
Max usable temp :
200 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
4 kW, 1 PH, 230 V
Chamber Size :
700 Dia x 750 D
Know More
CYLINDRICAL VACUUM OVEN (450 DIA)
Max Design temp :
225 °C
Max usable temp :
200 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °°C
Power rating :
3 kW, 1 PH, 230 V
Chamber Size :
450 Dia x 450 D
Know More
BIO-PESTICIDE EXTRACTION UNIT
Max Design temp :
150 °C
Max usable temp :
100 °C
Control Accuracy :
±10 °C
Power rating :
7.5 kW, 3 PH, 440 V
Know More
HEAT SEALING MACHINE
Max Design temp :
425 °C
Max usable temp :
400 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
1.5 kW, 1 PH, 230 V
Blade Size :
25 mm x 300 mm
Know More
N2O4 (DINITRO TETRAOXIDE) PILOT PLANT
Max Design temp :
1100 °C
Max usable temp :
900 °C
Control Accuracy :
±20 °C
Power rating :
6 kW, 3 PH, 440 V
Know More

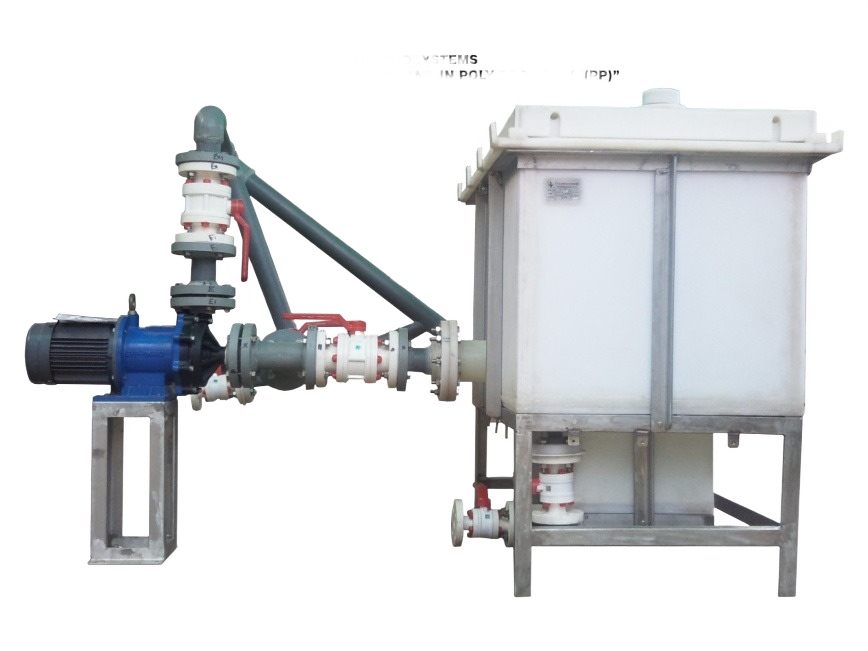

ELECTRO-IMPREGNATION TANK (POLY PROPYLENE)
Max Design temp :
95 °C
Max usable temp :
90 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±50 °C
Power rating :
4.5 kW, 3 PH, 440 V
Chamber Size :
700 x 600 x 600 mm
Know More

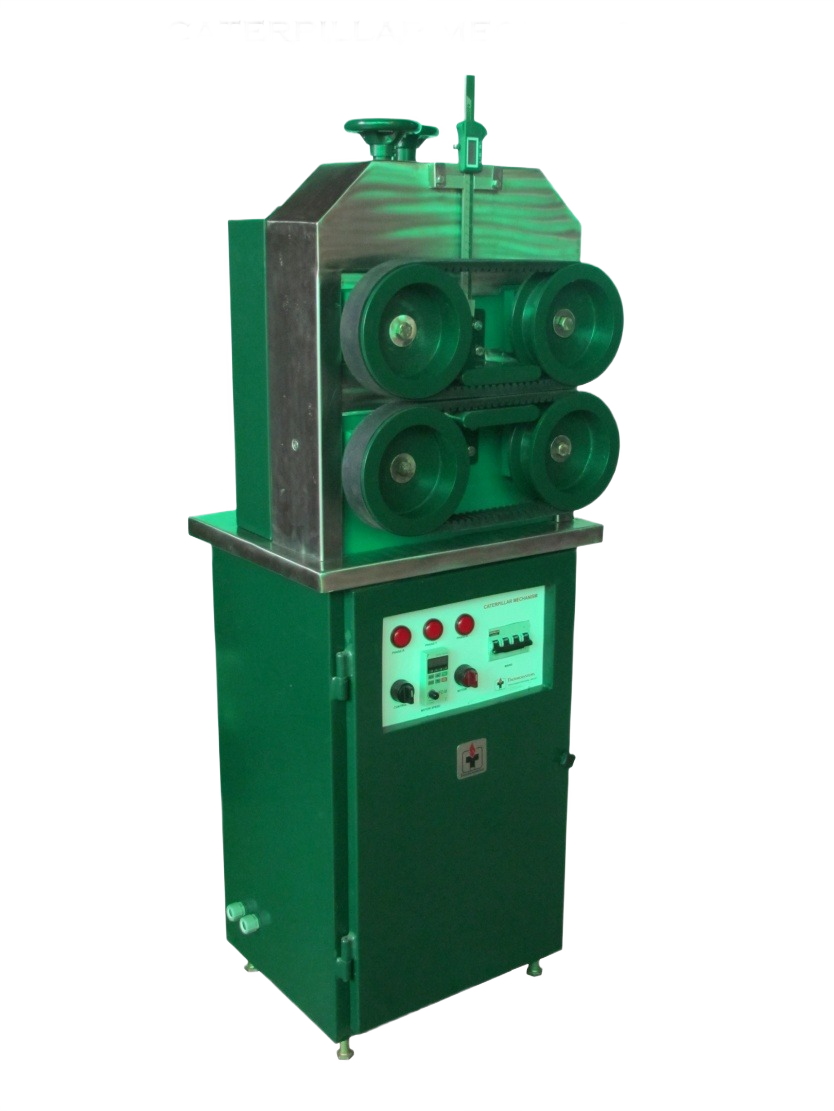

CATERPILLAR MECHANISM
Gap between belts :
0–50 mm
Speed of belt :
0–1000 mm/min
Power rating :
0.4 kW, 3 PH, 440 V
Know More
CONVECTIVE HEAT SOURCE
Max Design temp :
1400 °C
Max usable temp :
1350 °C
Heating source :
Oxygen/Acetylene Gas
Ignition :
Electric, timer controlled
Know More

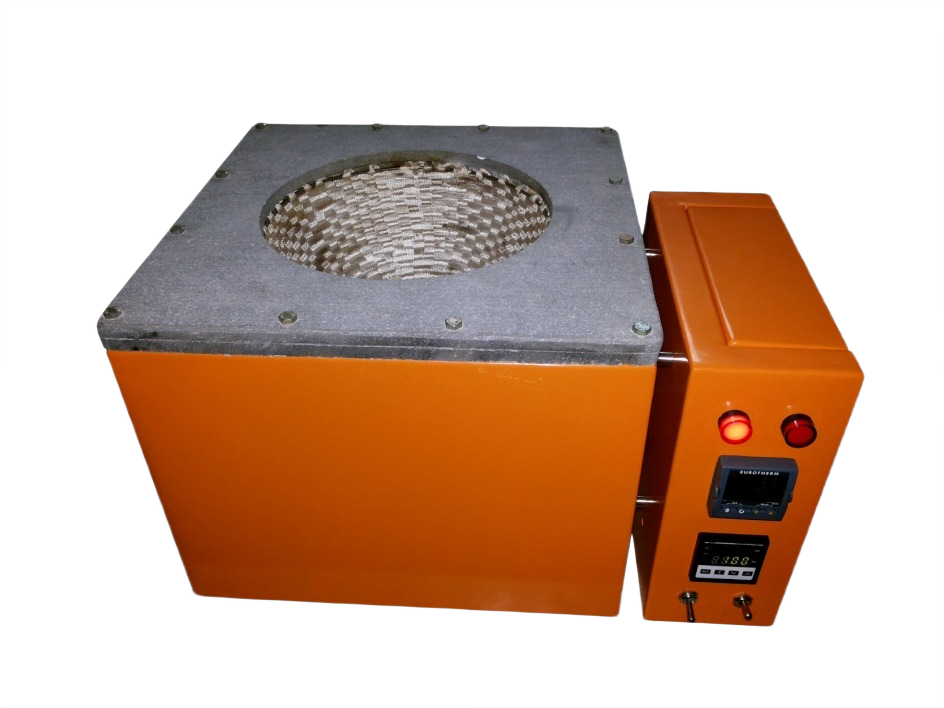

ROUND BOTTOM FLASK HEATING MANTEL
Max Design temp :
650 °C
Max usable temp :
600 °C
Control Accuracy :
±10 °C
Power rating :
1.5 kW, 1 PH, 230 V
Know More

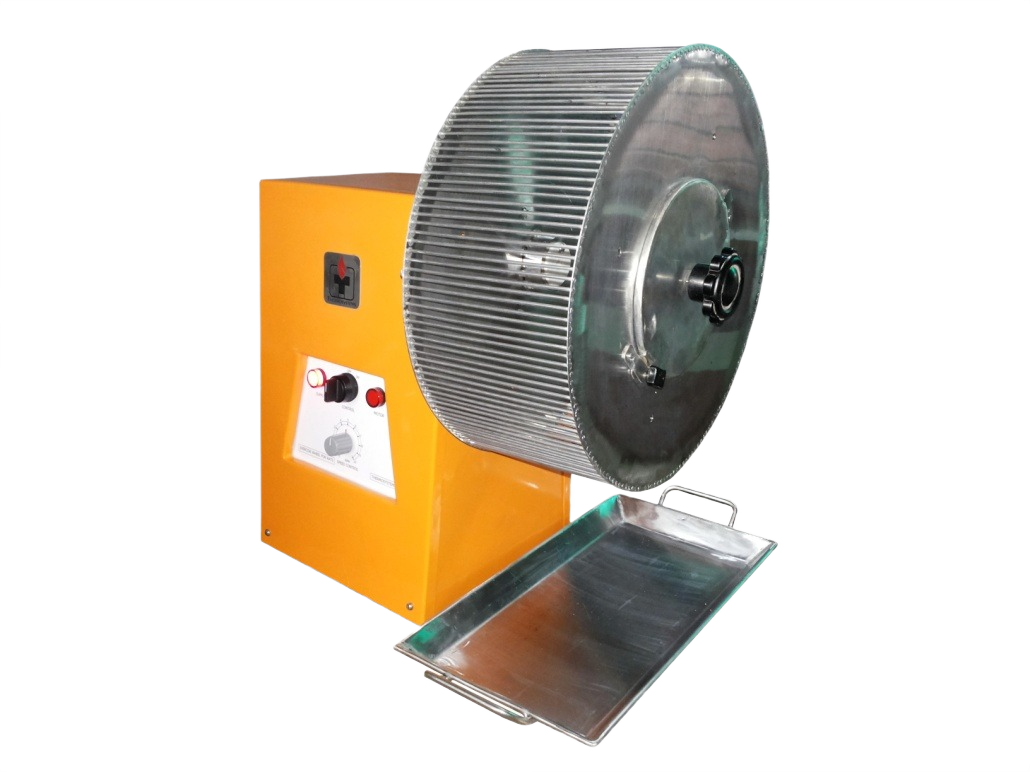

EXERCISE MACHINE FOR HAMSTER
Drum/Wheel size :
360 Dia x 150 mm
Speed of Drum :
1–10 RPM variable
Power rating :
150 W, 230 V AC
Know More
DISTILLED WATER PLANT (PYROGEN FREE)
Material of construction :
SS 304
Max Design temp :
100 °C
Power rating :
6 kW, 3 PH, 440 V
Output :
10 Ltrs/Hour
Safety :
Low level cut-off
Know More
ROLLER UNIT FOR CLAY TILES
Roller length :
600 mm
Gap of rollers :
1–40 mm
Table size :
650 x 1250 mm
Know More
CHILLER UNIT
Water quantity :
50 Liters
Flow rate :
10–15 LPM @ 3–4 Bar
Inlet temperature :
28–50 °C
Outlet temperature :
+15 °C to +20 °C
Operating ambient temp :
+10 to +45 °C
Cooling capacity :
6000 Kcal/hr (2 Ton)
Know More

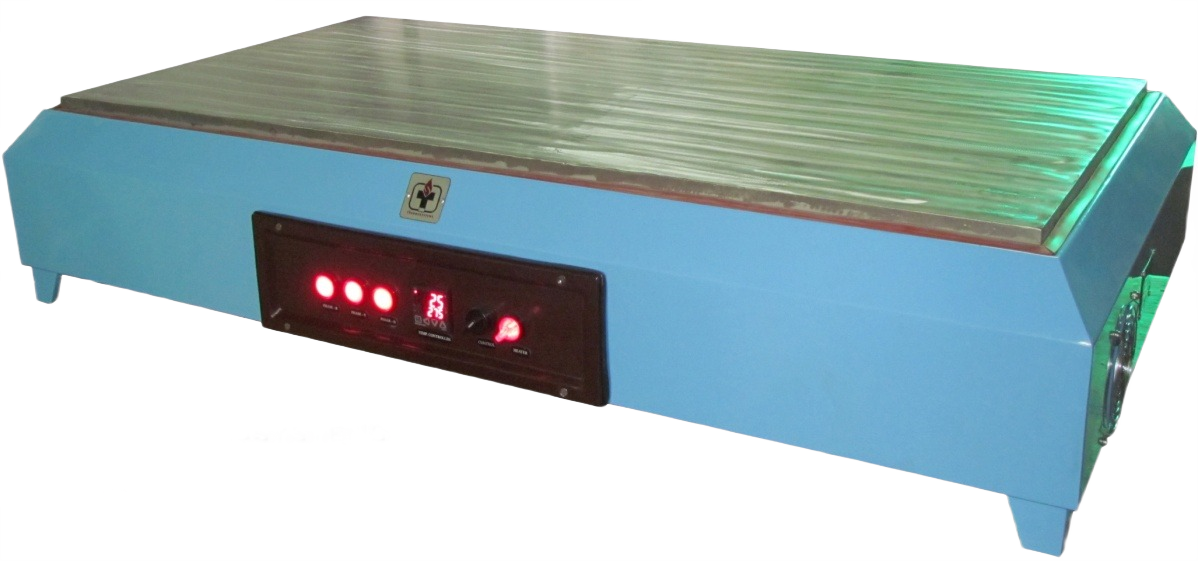

SS HOT PLATE (600 × 1200 mm)
Top plate size :
600 x 1200 mm
Max usable temp :
300 °C
Control Accuracy :
±10 °C
Temp control :
Digital PID
Power rating :
6 kW, 3 PH, 440 V
Know More

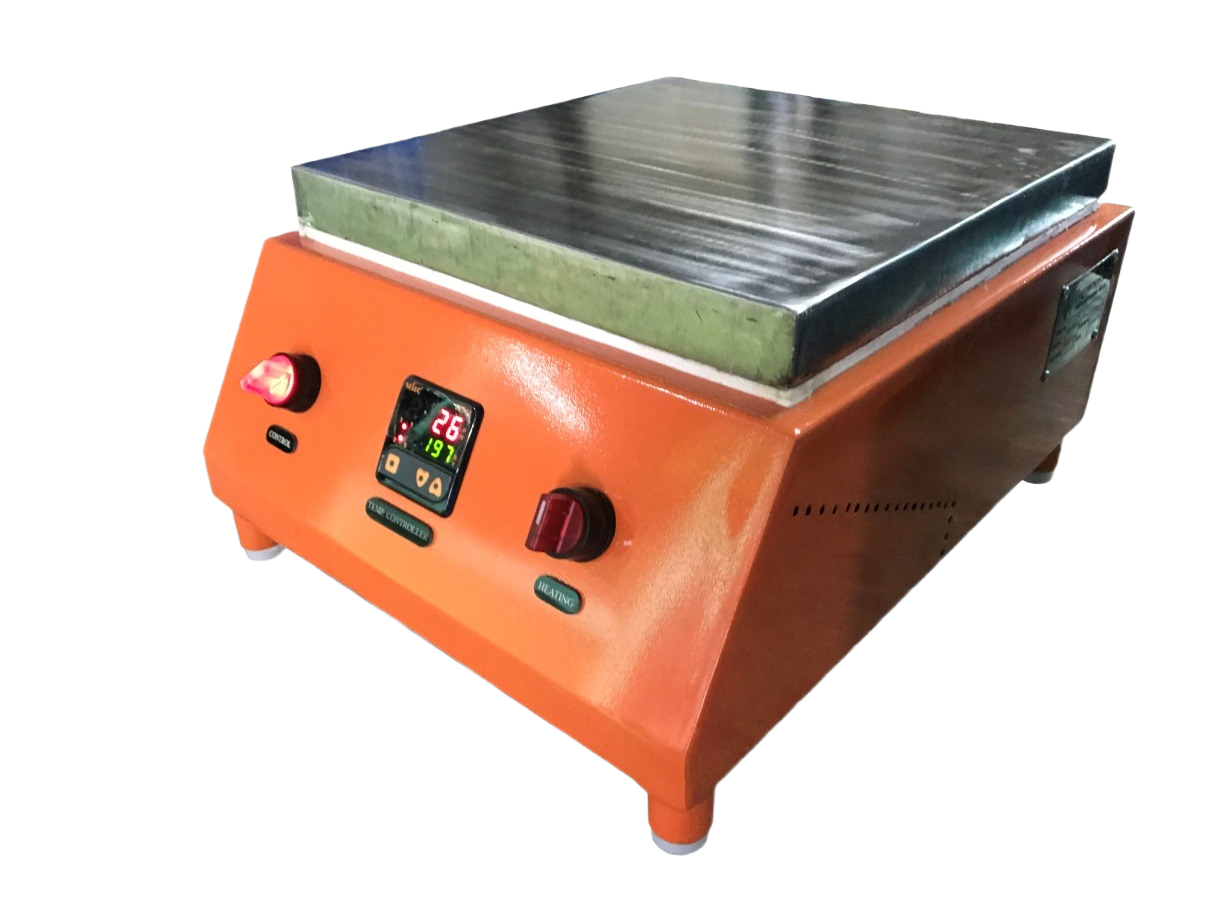

SS HOT PLATE (300 × 300 mm)
Top plate size :
300 x 300 mm
Max usable temp :
300 °C
Control Accuracy :
±10 °C
Temp control :
Digital PID
Power rating :
1 kW, 1 PH, 230 V
Know More

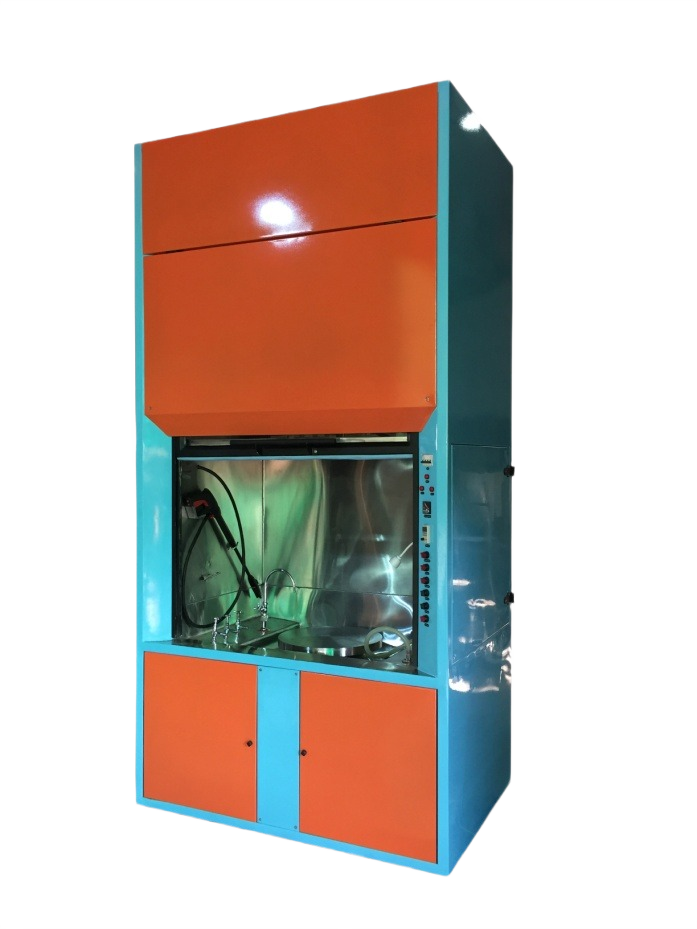

FUME HOOD WITH HIGH PRESSURE CLEANING, WASHING & DRYING
Material of construction :
SS 304
Drying temp :
200 °C
Control Accuracy :
±10 °C
Exhaust blower :
1 HP, 3 PH, 440 V
Power rating :
4.5 kW, 3 PH, 440 V
Chamber Size :
1200 W x 600 D x 750 H
Know More

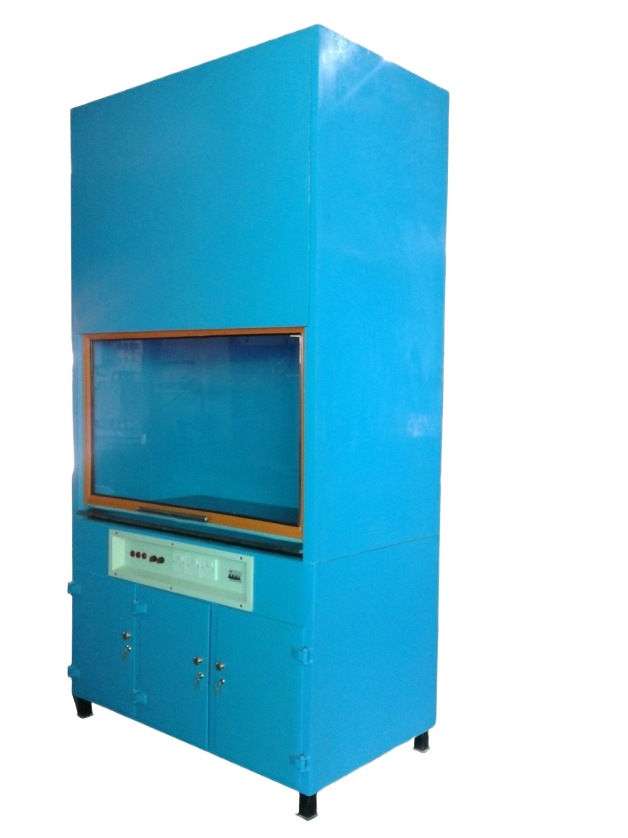

FUME HOOD WITH EXHAUST SYSTEM
Material of construction :
Polypropylene (SS reinforced)
Exhaust blower :
1 HP, 3 PH, 440 V
Power rating :
3 kW, 3 PH, 440 V
Chamber Size :
1200 W x 600 D x 750 H
Know More

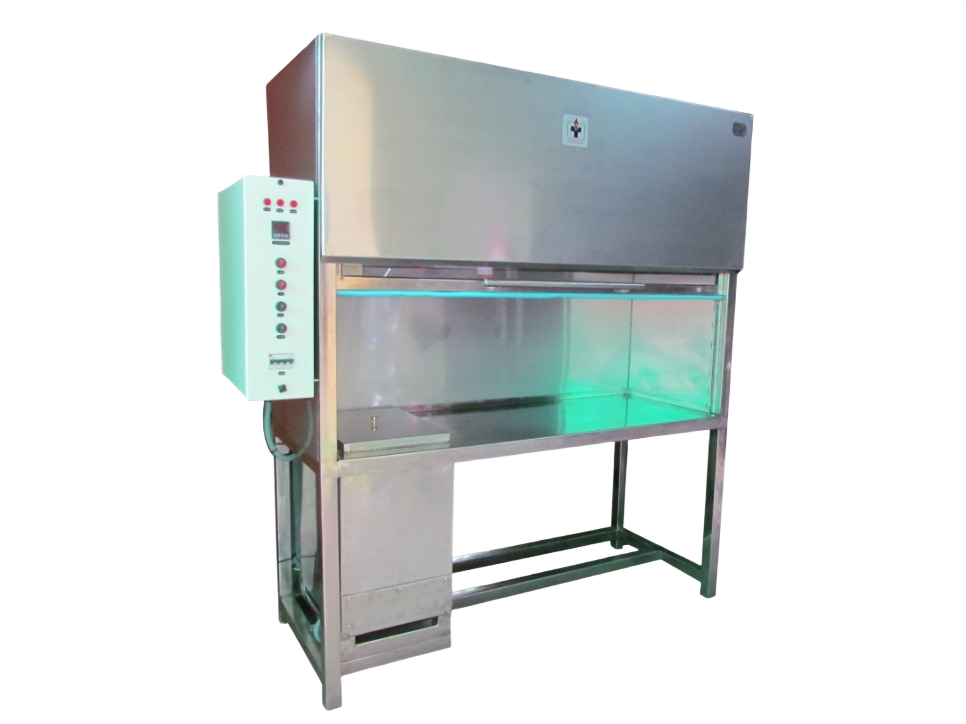

PCB CLEANING FACILITY WITH EXHAUST SYSTEM
Max Design temp :
110 °C
Max usable temp :
60 °C
Control Accuracy :
±10 °C
Exhaust blower :
1 HP, 3 PH, 440 V
Heater rating :
1.5 kW, 1 PH, 230 V
Chamber Size :
500 D x 1200 W x 600 H
Know More

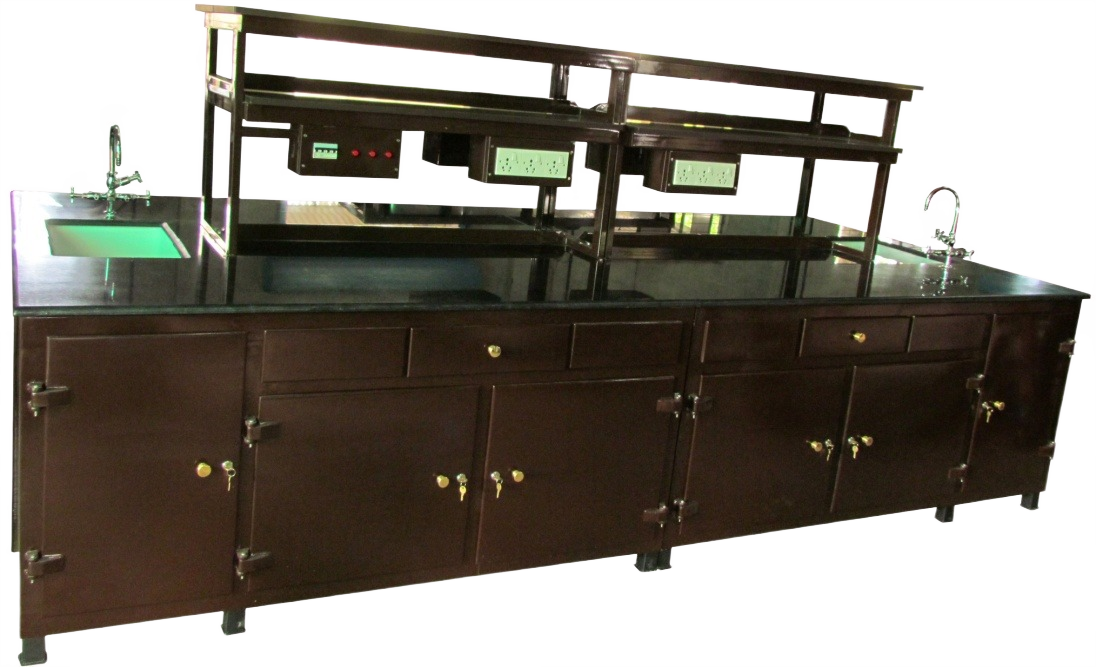

LABORATORY TABLE (POLY PROPYLENE)
Table Size :
3.7 L x 1.65 M W
Table top :
Granite
Power Supply :
3 PH, 440 V
Know More

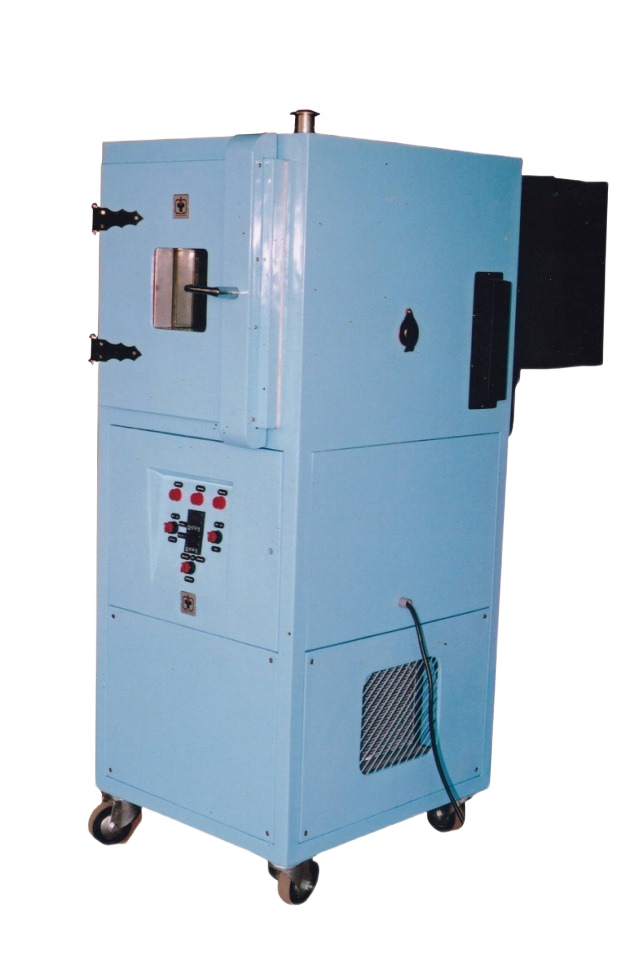

THERMAL CHAMBER FOR ELECTRONIC MODULES
Temperature range :
+5 °C to +200 °C
Control :
PID Controller
Control Accuracy :
±10 °C
Temp. uniformity :
within ±20 °C
Power rating :
3.5 kW, 1 PH, 230 V
Chamber Size :
500 x 500 x 500 mm
Know More

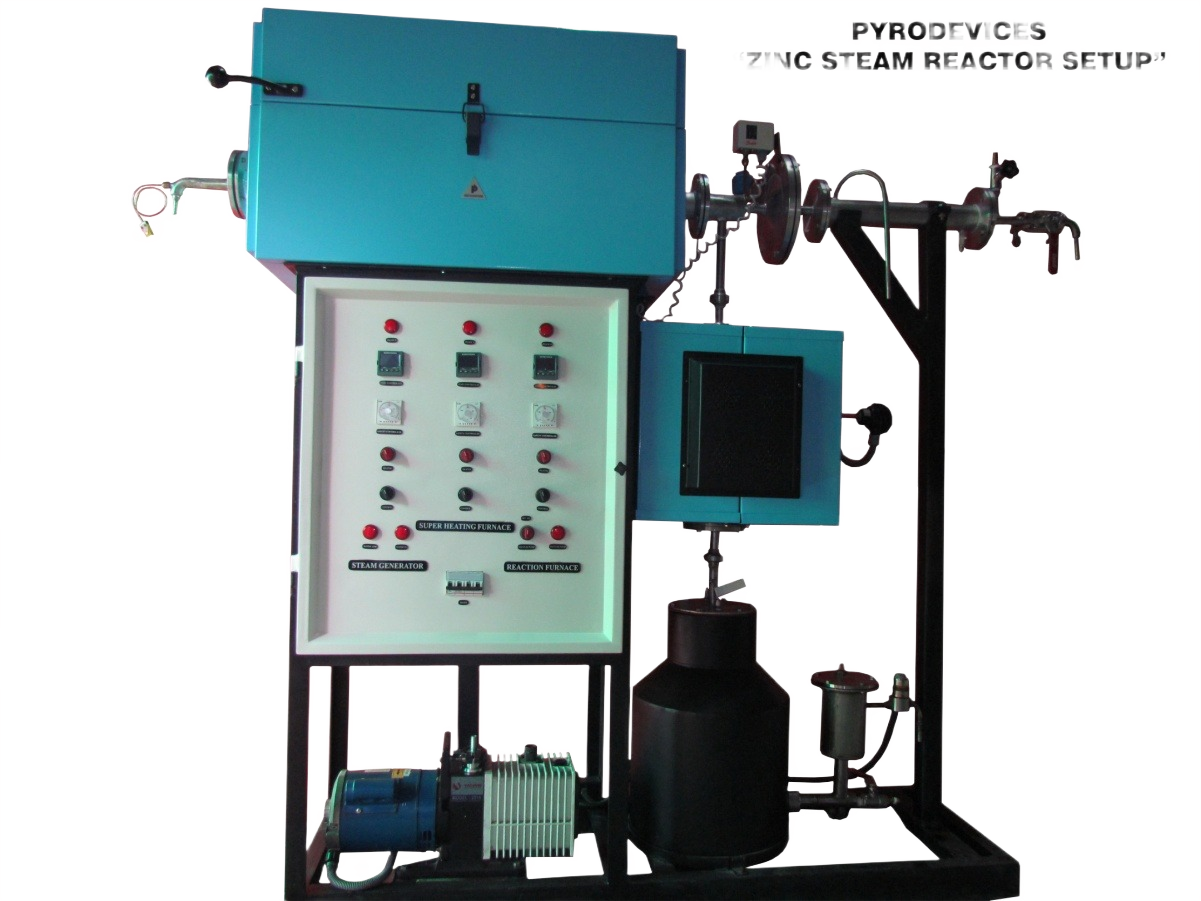

ZINC STEAM REACTOR
Zinc vaporiser :
1000 °C
Steam generator :
100 °C
Steam super heater :
600 °C
Control Accuracy :
±10 °C
Temp. uniformity :
within ±20 °C
Power rating :
6 kW, 3 PH, 440 V
Know More

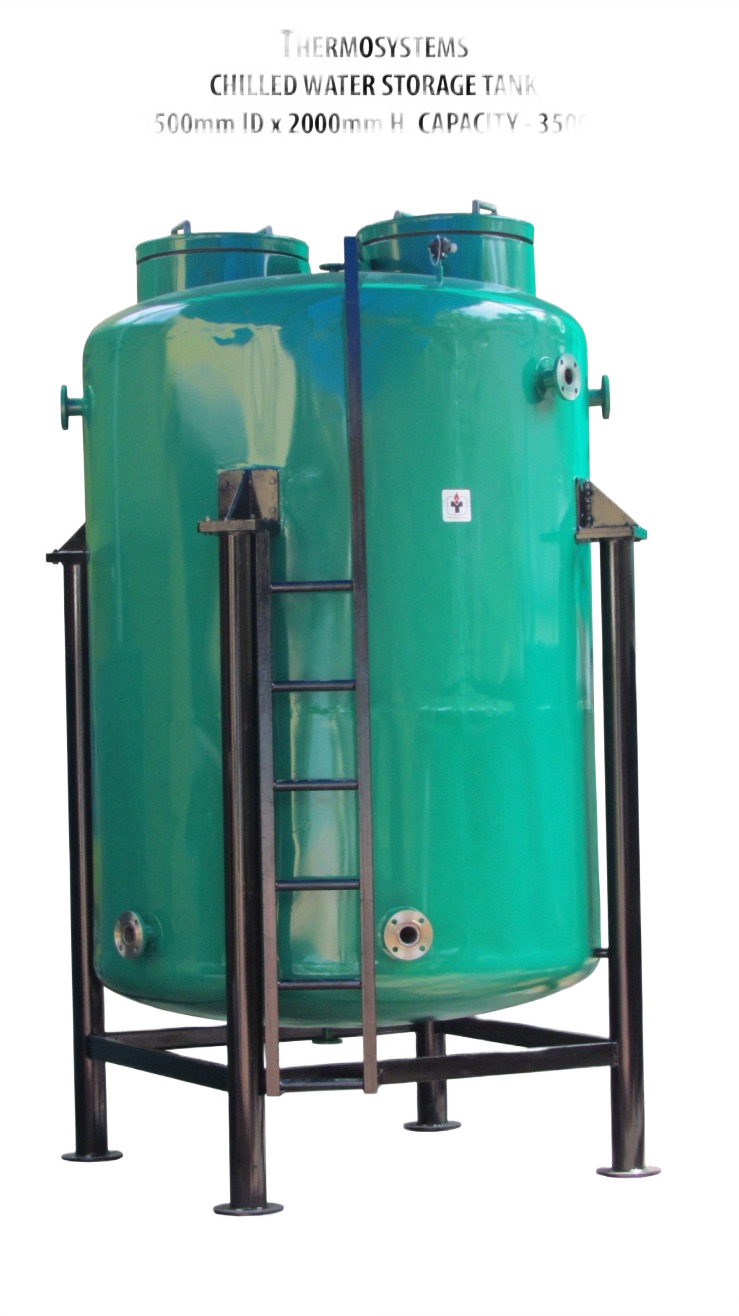

CHILLED WATER STORAGE TANK
Capacity :
3500 Ltrs
Material :
SS 304
Insulation :
Puff
Temp. range :
–10 °C
Know More
